BAT54QBZ

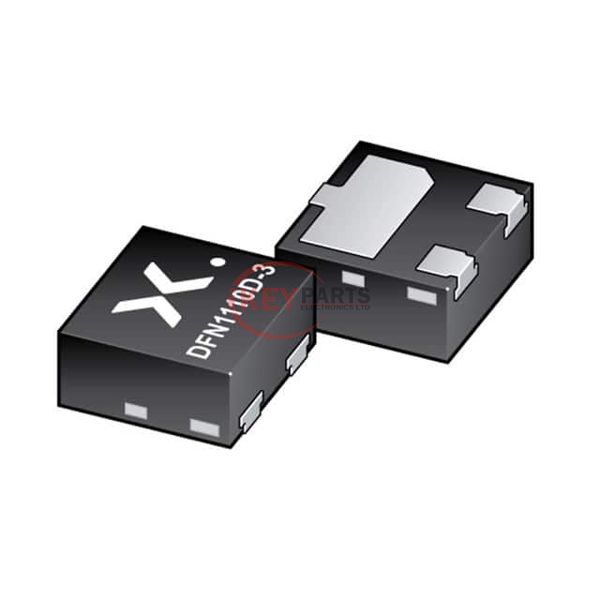

Enlarger

Lmages are for reference only See Product Specitications

Nexperia BAT54QBZ

Manufacturer :
Nexperia
Mfr. Part # :
BAT54QBZ
Description
DIODE SCHOTTKY 30V 200MA 3DFN
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54QBZ PDF
In Stock
886
BAT54QBZ Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Capacitance @ Vr, F10pF @ 1V, 1MHz
Mounting TypeSurface Mount, Wettable Flank
Package / Case3-XDFN Exposed Pad
Supplier Device PackageDFN1110D-3
Operating Temperature - Junction150°C
Request Quote Now
Request Quote Now

We can supply BAT54QBZ, use the request quote form to request BAT54QBZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54QBZ. The price and lead time for BAT54QBZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54QBZ. We look forward to working with you to establish long-term relations of cooperation.
