BAT54-AQ

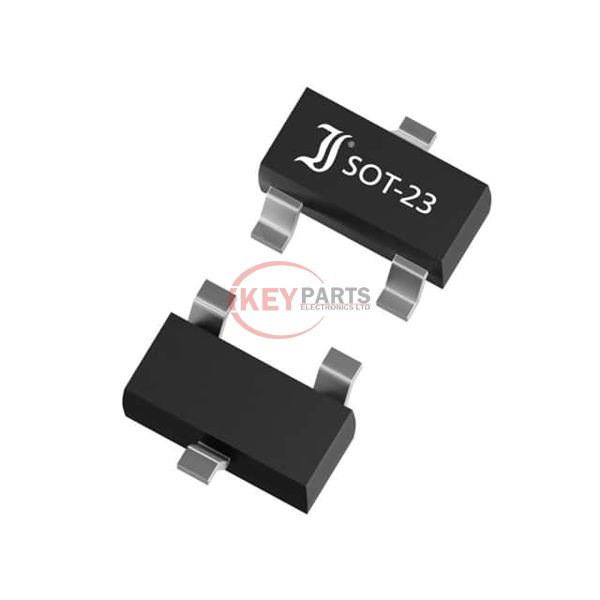

Enlarger

Lmages are for reference only See Product Specitications

Diotec Semiconductor BAT54-AQ

Manufacturer :
Diotec Semiconductor
Mfr. Part # :
BAT54-AQ
Description
SCHOTTKY SOT-23 30V 0.2A
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54-AQ PDF
In Stock
583
BAT54-AQ Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Capacitance @ Vr, F10pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23-3 (TO-236)
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply BAT54-AQ, use the request quote form to request BAT54-AQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54-AQ. The price and lead time for BAT54-AQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54-AQ. We look forward to working with you to establish long-term relations of cooperation.
