120NQ045R-1

Enlarger

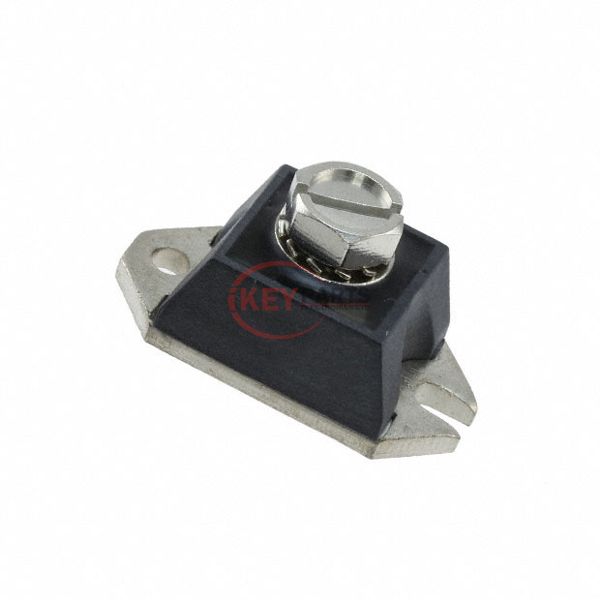

Lmages are for reference only See Product Specitications

SMC Diode Solutions 120NQ045R-1

Manufacturer :
SMC Diode Solutions
Mfr. Part # :
120NQ045R-1
Description
DIODE SCHOTTKY 45V 120A PRM1-1
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
120NQ045R-1 PDF
120NQ045R-1 Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45 V
Current - Average Rectified (Io)120A
Voltage - Forward (Vf) (Max) @ If610 mV @ 120 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr10 mA @ 45 V
Capacitance @ Vr, F5200pF @ 5V, 1MHz
Mounting TypeChassis Mount
Package / CaseHALF-PAK
Supplier Device PackagePRM1-1 (Half Pak Module)
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply 120NQ045R-1, use the request quote form to request 120NQ045R-1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 120NQ045R-1. The price and lead time for 120NQ045R-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 120NQ045R-1. We look forward to working with you to establish long-term relations of cooperation.
