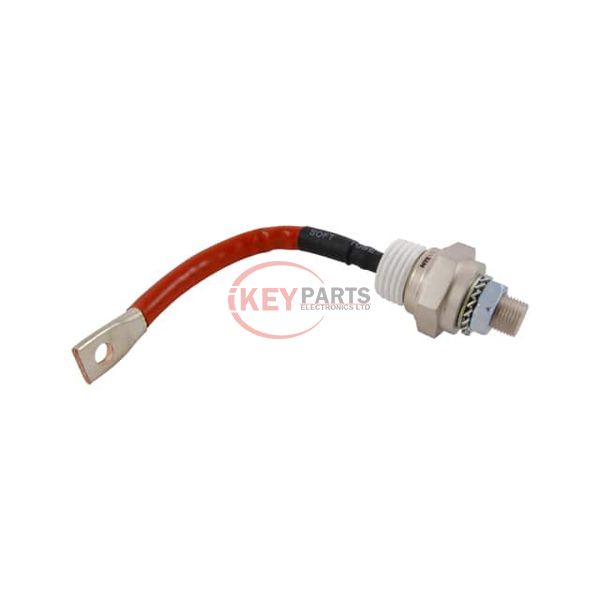

NTE6109

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE6109

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE6109
Description
R-1600PRV 550A ANODE
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE6109 PDF
In Stock
285
NTE6109 Tech Specifications
Series-
PackageBag
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1600 V
Current - Average Rectified (Io)300A
Voltage - Forward (Vf) (Max) @ If2.15 V @ 1500 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)9 µs
Current - Reverse Leakage @ Vr50 mA @ 1600 V
Capacitance @ Vr, F-
Mounting TypeStud Mount
Package / CaseTO-209AE, TO-118-4, Stud
Supplier Device PackageT-70
Operating Temperature - Junction-65°C ~ 200°C
Request Quote Now
Request Quote Now

We can supply NTE6109, use the request quote form to request NTE6109 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE6109. The price and lead time for NTE6109 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE6109. We look forward to working with you to establish long-term relations of cooperation.
