NSR1020MW2T1G

Enlarger

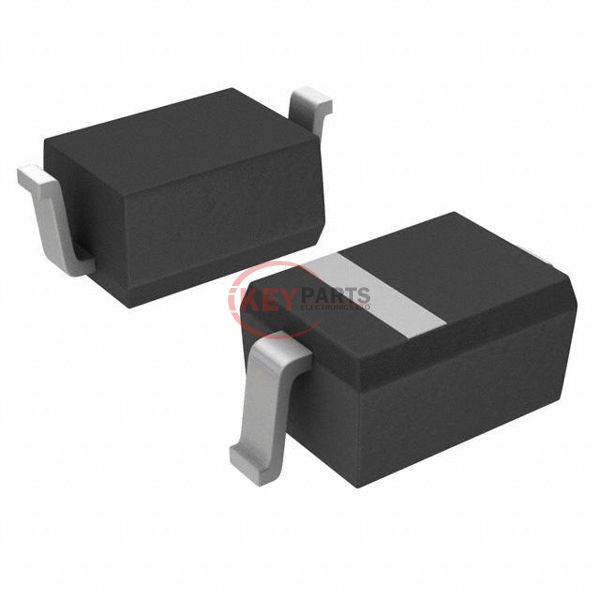

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSR1020MW2T1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSR1020MW2T1G
Description
DIODE SCHOTTKY 20V 1A SOD323
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSR1020MW2T1G PDF
In Stock
23329
NSR1020MW2T1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)1A (DC)
Voltage - Forward (Vf) (Max) @ If540 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr40 µA @ 15 V
Capacitance @ Vr, F29pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction125°C (Max)
Request Quote Now
Request Quote Now

We can supply NSR1020MW2T1G, use the request quote form to request NSR1020MW2T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSR1020MW2T1G. The price and lead time for NSR1020MW2T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSR1020MW2T1G. We look forward to working with you to establish long-term relations of cooperation.
