DZ1100N22KTIMHPSA1

Enlarger

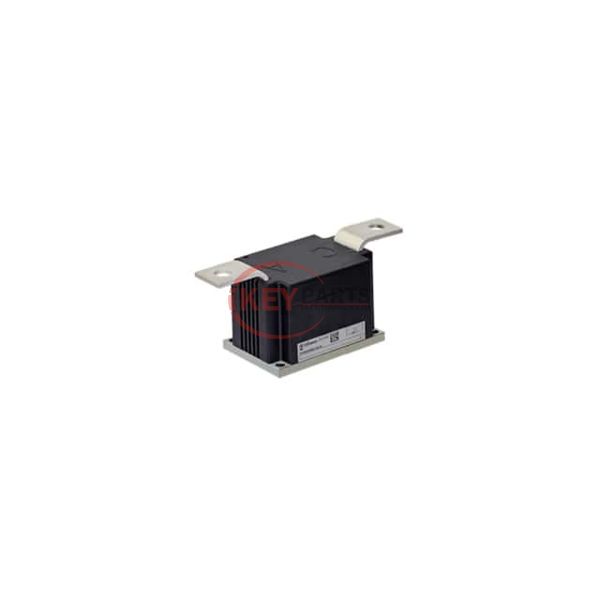

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) DZ1100N22KTIMHPSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
DZ1100N22KTIMHPSA1
Description
THYR / DIODE MODULE DK
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DZ1100N22KTIMHPSA1 PDF
DZ1100N22KTIMHPSA1 Tech Specifications
Series-
PackageTray
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)2200 V
Current - Average Rectified (Io)1100A
Voltage - Forward (Vf) (Max) @ If1.11 V @ 3000 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr80 mA @ 2200 V
Capacitance @ Vr, F-
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageBG-PB70AT-1
Operating Temperature - Junction150°C (Max)
Request Quote Now
Request Quote Now

We can supply DZ1100N22KTIMHPSA1, use the request quote form to request DZ1100N22KTIMHPSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DZ1100N22KTIMHPSA1. The price and lead time for DZ1100N22KTIMHPSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DZ1100N22KTIMHPSA1. We look forward to working with you to establish long-term relations of cooperation.
