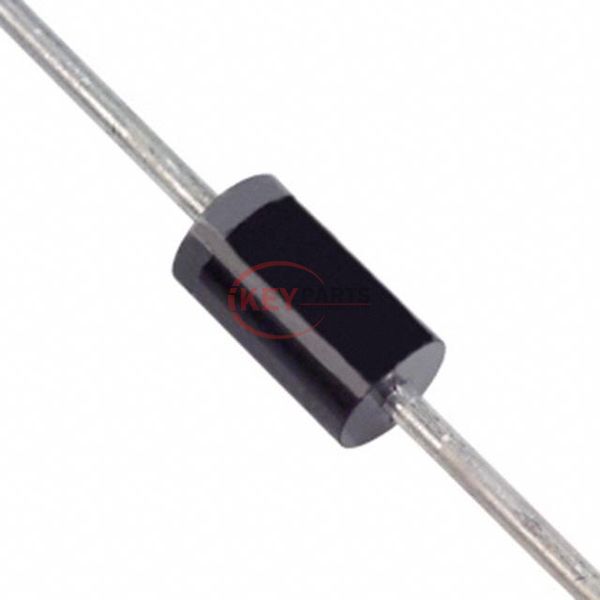

SB560-A

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) SB560-A

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
SB560-A
Description
DIODE SCHOTTKY 60V 5A
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SB560-A PDF
SB560-A Tech Specifications
Series-
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)60 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If0.67 V @ 5 A
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr0.5 mA @ 60 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AD, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction-65°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply SB560-A, use the request quote form to request SB560-A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SB560-A. The price and lead time for SB560-A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SB560-A. We look forward to working with you to establish long-term relations of cooperation.
