SB180

Enlarger

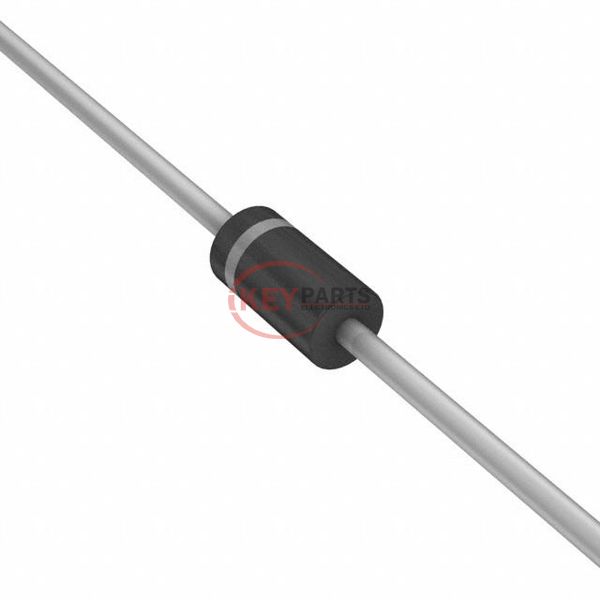

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor SB180

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
SB180
Description
DIODE SCHOTTKY 80V 1A DO204AL
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SB180 PDF
In Stock
4496
SB180 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If850 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr500 µA @ 80 V
Capacitance @ Vr, F110pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-204AL (DO-41)
Operating Temperature - Junction-60°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply SB180, use the request quote form to request SB180 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SB180. The price and lead time for SB180 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SB180. We look forward to working with you to establish long-term relations of cooperation.
