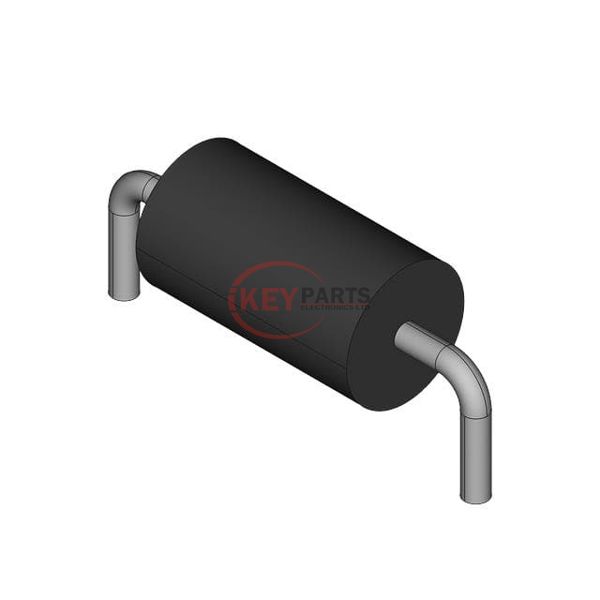

SB560

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics SB560

Manufacturer :
Rochester Electronics
Mfr. Part # :
SB560
Description
RECTIFIER DIODE, SCHOTTKY, 5A, 6
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SB560 PDF
SB560 Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)60 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If670 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr500 µA @ 60 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AA, DO-27, Axial
Supplier Device PackageDO-201
Operating Temperature - Junction-50°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply SB560, use the request quote form to request SB560 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SB560. The price and lead time for SB560 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SB560. We look forward to working with you to establish long-term relations of cooperation.
