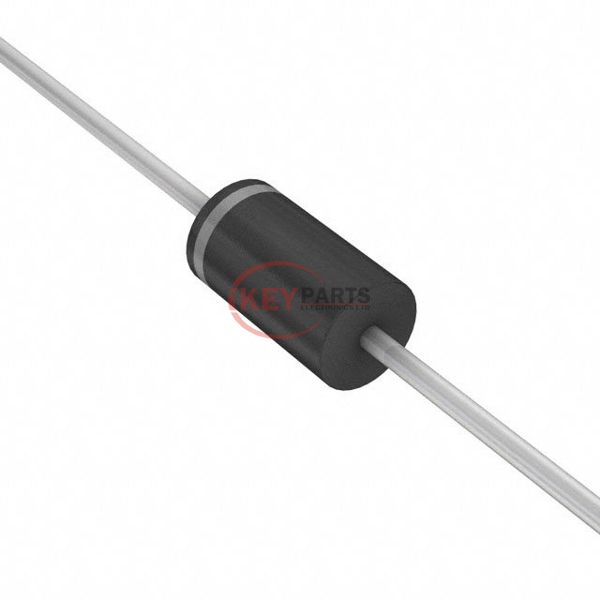

1N5820

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics 1N5820

Manufacturer :
Rochester Electronics
Mfr. Part # :
1N5820
Description
RECTIFIER, SCHOTTKY, 3A, 20V
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N5820 PDF
In Stock
6786
1N5820 Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If850 mV @ 9.4 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr2 mA @ 20 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AA, DO-27, Axial
Supplier Device PackageDO-201
Operating Temperature - Junction-50°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply 1N5820, use the request quote form to request 1N5820 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5820. The price and lead time for 1N5820 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5820. We look forward to working with you to establish long-term relations of cooperation.
