Series | - | |
Package | Bulk | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 100 V | |
Current - Average Rectified (Io) | 20A | |
Voltage - Forward (Vf) (Max) @ If | 950 mV @ 20 A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 35 ns | |
Current - Reverse Leakage @ Vr | 10 µA @ 100 V | |
Capacitance @ Vr, F | 300pF @ 10V, 1MHz | |
Mounting Type | Stud Mount | |

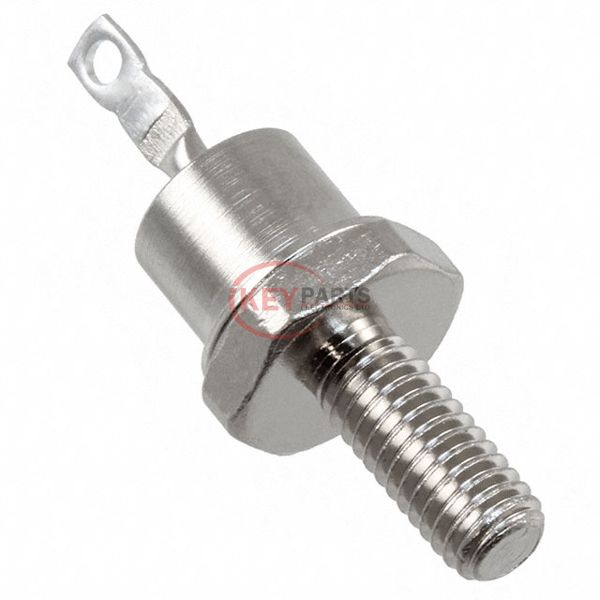

Package / Case | DO-203AA, DO-4, Stud | |
Supplier Device Package | DO-203AA | |
Operating Temperature - Junction | -65°C ~ 175°C |
We can supply 1N5814, use the request quote form to request 1N5814 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5814. The price and lead time for 1N5814 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5814. We look forward to working with you to establish long-term relations of cooperation.
![]() |
