1N5420

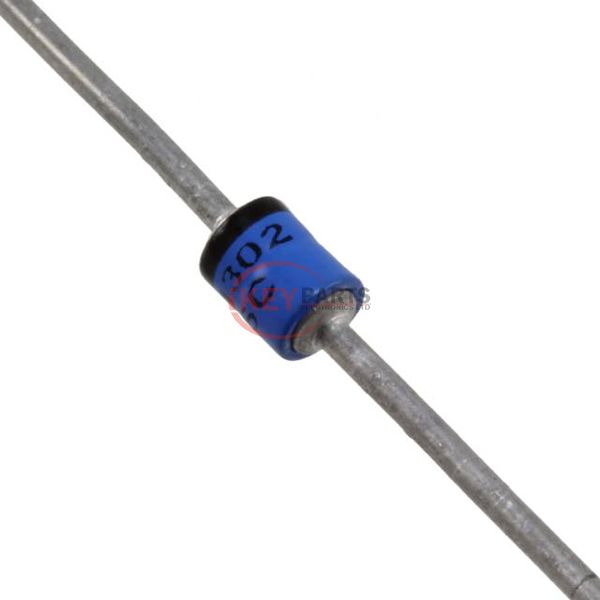

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology 1N5420

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
1N5420
Description
DIODE GEN PURP 600V 3A AXIAL
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N5420 PDF
1N5420 Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1.5 V @ 9 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)400 ns
Current - Reverse Leakage @ Vr1 µA @ 600 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseB, Axial
Supplier Device PackageB, Axial
Operating Temperature - Junction-65°C ~ 175°C
Request Quote Now
Request Quote Now

We can supply 1N5420, use the request quote form to request 1N5420 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5420. The price and lead time for 1N5420 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5420. We look forward to working with you to establish long-term relations of cooperation.
