SMD22WS-TP

Enlarger

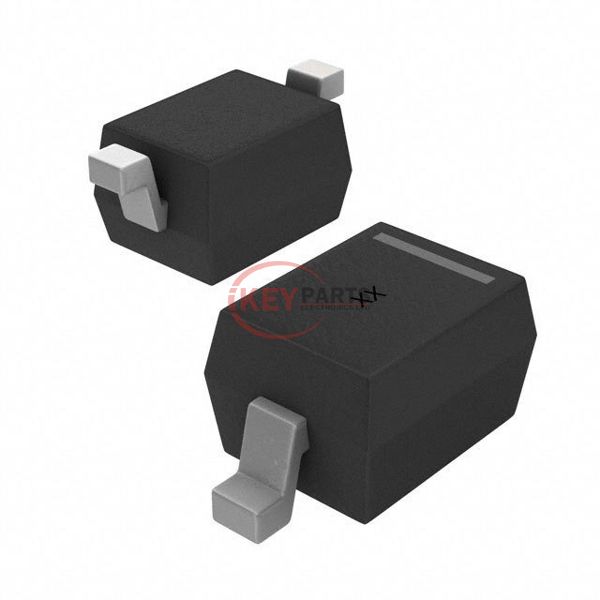

Lmages are for reference only See Product Specitications

Micro Commercial Components (MCC) SMD22WS-TP

Manufacturer :
Micro Commercial Components (MCC)
Mfr. Part # :
SMD22WS-TP
Description
2A,20V,SCHOTTKY,SOD-323 PACKAGE
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMD22WS-TP PDF
SMD22WS-TP Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If550 mV @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr100 µA @ 20 V
Capacitance @ Vr, F120pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction-55°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply SMD22WS-TP, use the request quote form to request SMD22WS-TP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMD22WS-TP. The price and lead time for SMD22WS-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMD22WS-TP. We look forward to working with you to establish long-term relations of cooperation.
