NSR01F30NXT5G

Enlarger

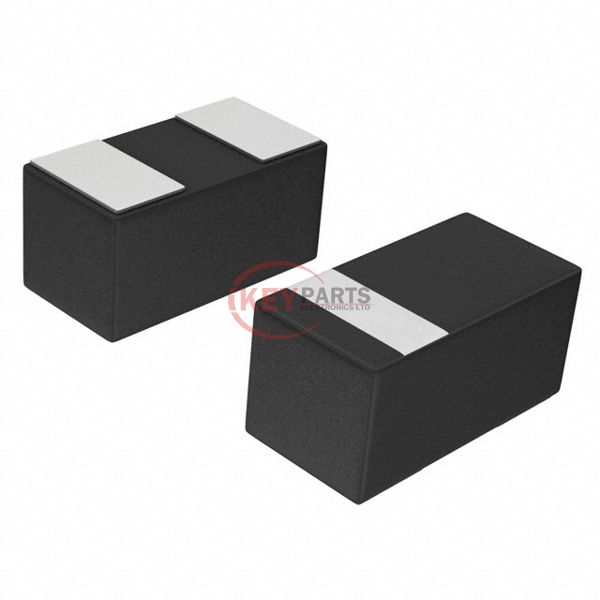

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSR01F30NXT5G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSR01F30NXT5G
Description
DIODE SCHOTTKY 30V 100MA 2DSN
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSR01F30NXT5G PDF
NSR01F30NXT5G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)100mA (DC)
Voltage - Forward (Vf) (Max) @ If500 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 µA @ 30 V
Capacitance @ Vr, F7pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / Case0201 (0603 Metric)
Supplier Device Package2-DSN (0.60x0.30)
Operating Temperature - Junction125°C (Max)
Request Quote Now
Request Quote Now

We can supply NSR01F30NXT5G, use the request quote form to request NSR01F30NXT5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSR01F30NXT5G. The price and lead time for NSR01F30NXT5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSR01F30NXT5G. We look forward to working with you to establish long-term relations of cooperation.
