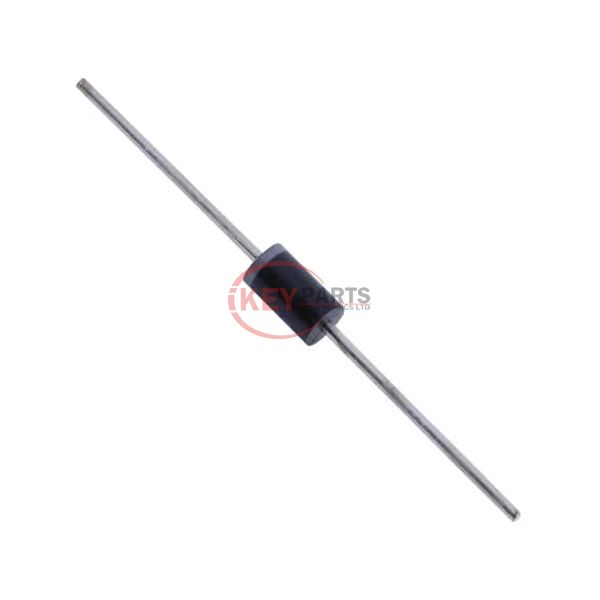

NTE5809

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5809

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5809
Description
R-1000 PRV 3A AXIAL LEAD
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5809 PDF
NTE5809 Tech Specifications
Series-
PackageBag
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1000 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1.2 V @ 9.4 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr500 µA @ 1000 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AA, DO-27, Axial
Supplier Device PackageDO-27
Operating Temperature - Junction-65°C ~ 175°C
Request Quote Now
Request Quote Now

We can supply NTE5809, use the request quote form to request NTE5809 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5809. The price and lead time for NTE5809 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5809. We look forward to working with you to establish long-term relations of cooperation.
