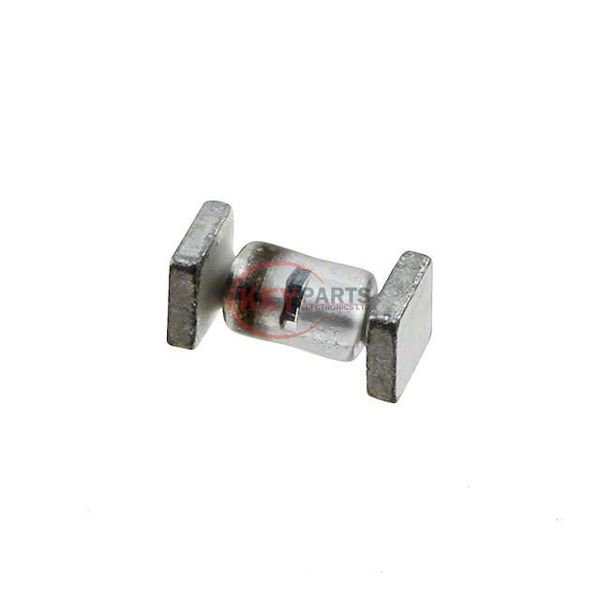

1N5809US

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology 1N5809US

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
1N5809US
Description
DIODE GEN PURP 100V 3A B-MELF
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N5809US PDF
In Stock
477
1N5809US Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If875 mV @ 4 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)30 ns
Current - Reverse Leakage @ Vr5 µA @ 100 V
Capacitance @ Vr, F60pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / CaseSQ-MELF, B
Supplier Device PackageB, SQ-MELF
Operating Temperature - Junction-65°C ~ 175°C
Request Quote Now
Request Quote Now

We can supply 1N5809US, use the request quote form to request 1N5809US pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5809US. The price and lead time for 1N5809US depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5809US. We look forward to working with you to establish long-term relations of cooperation.
