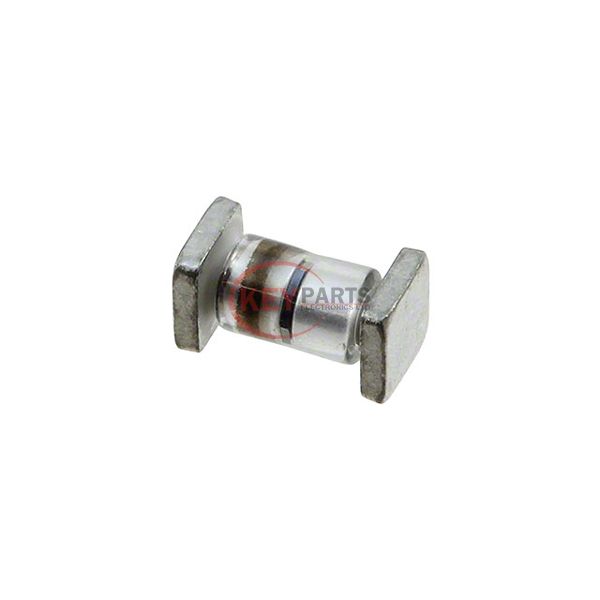

1N5804US

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology 1N5804US

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
1N5804US
Description
DIODE GEN PURP 100V 1A D5A
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N5804US PDF
In Stock
567
1N5804US Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If875 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25 ns
Current - Reverse Leakage @ Vr1 µA @ 100 V
Capacitance @ Vr, F25pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / CaseSQ-MELF, A
Supplier Device PackageD-5A
Operating Temperature - Junction-65°C ~ 175°C
Request Quote Now
Request Quote Now

We can supply 1N5804US, use the request quote form to request 1N5804US pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5804US. The price and lead time for 1N5804US depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5804US. We look forward to working with you to establish long-term relations of cooperation.
