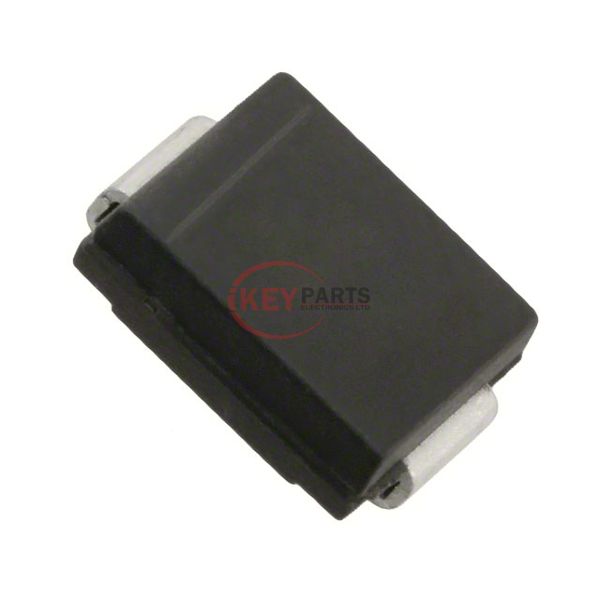

B560CQ-13-F

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) B560CQ-13-F

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
B560CQ-13-F
Description
DIODE SCHOTTKY 60V 5A SMC
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
B560CQ-13-F PDF
B560CQ-13-F Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)60 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If700 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr500 µA @ 60 V
Capacitance @ Vr, F300pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply B560CQ-13-F, use the request quote form to request B560CQ-13-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number B560CQ-13-F. The price and lead time for B560CQ-13-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# B560CQ-13-F. We look forward to working with you to establish long-term relations of cooperation.
