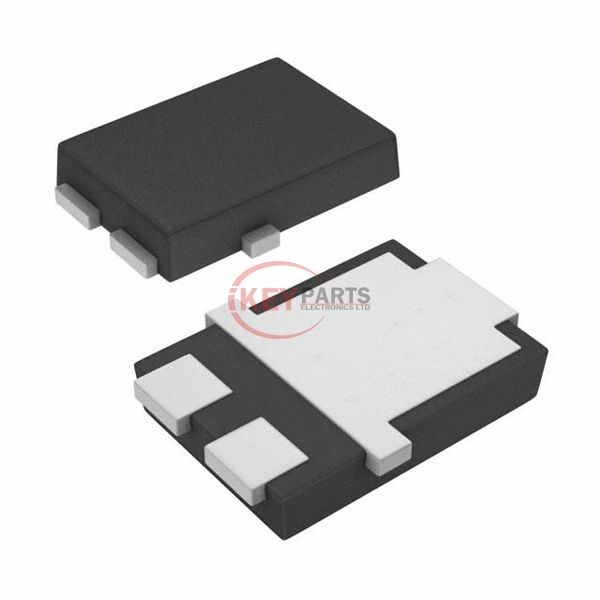

S4PM-M3/86A

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division S4PM-M3/86A

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
S4PM-M3/86A
Description
DIODE GEN PURP 1KV 4A TO277A
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
S4PM-M3/86A PDF
S4PM-M3/86A Tech Specifications
SerieseSMP®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1000 V
Current - Average Rectified (Io)4A
Voltage - Forward (Vf) (Max) @ If1.1 V @ 4 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)2.5 µs
Current - Reverse Leakage @ Vr10 µA @ 1000 V
Capacitance @ Vr, F30pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseTO-277, 3-PowerDFN
Supplier Device PackageTO-277A (SMPC)
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply S4PM-M3/86A, use the request quote form to request S4PM-M3/86A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S4PM-M3/86A. The price and lead time for S4PM-M3/86A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S4PM-M3/86A. We look forward to working with you to establish long-term relations of cooperation.
