SD560BTR

Enlarger

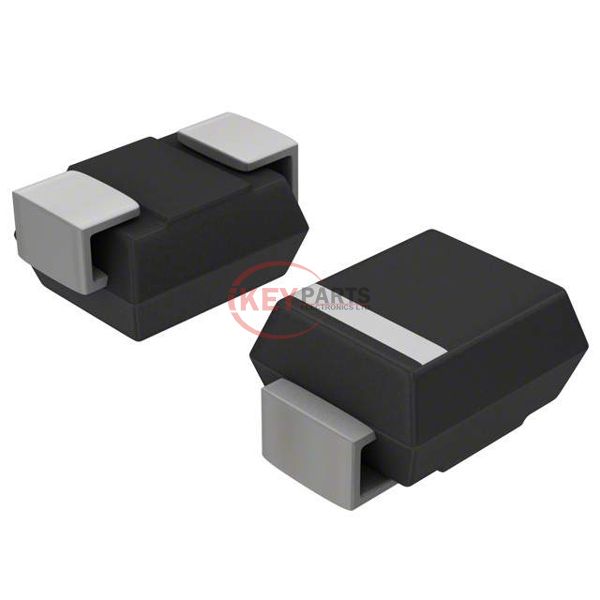

Lmages are for reference only See Product Specitications

SMC Diode Solutions SD560BTR

Manufacturer :
SMC Diode Solutions
Mfr. Part # :
SD560BTR
Description
DIODE GEN PURP 600V 5A SMB
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SD560BTR PDF
SD560BTR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If1.2 V @ 5 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr9 µA @ 600 V
Capacitance @ Vr, F50pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMB
Operating Temperature - Junction-65°C ~ 175°C
Request Quote Now
Request Quote Now

We can supply SD560BTR, use the request quote form to request SD560BTR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD560BTR. The price and lead time for SD560BTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD560BTR. We look forward to working with you to establish long-term relations of cooperation.
