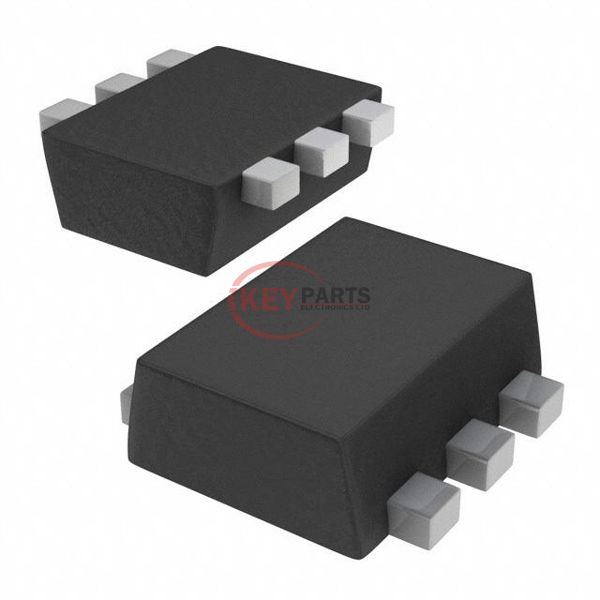

SS0503SH-TL-E

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics SS0503SH-TL-E

Manufacturer :
Rochester Electronics
Mfr. Part # :
SS0503SH-TL-E
Description
RECTIFIER DIODE
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SS0503SH-TL-E PDF
SS0503SH-TL-E Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)500mA
Voltage - Forward (Vf) (Max) @ If470 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)10 ns
Current - Reverse Leakage @ Vr120 µA @ 5 V
Capacitance @ Vr, F13pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / Case6-SMD, Flat Leads
Supplier Device Package6-SCH
Operating Temperature - Junction-55°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply SS0503SH-TL-E, use the request quote form to request SS0503SH-TL-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SS0503SH-TL-E. The price and lead time for SS0503SH-TL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SS0503SH-TL-E. We look forward to working with you to establish long-term relations of cooperation.
