NSR0520V2T1G

Enlarger

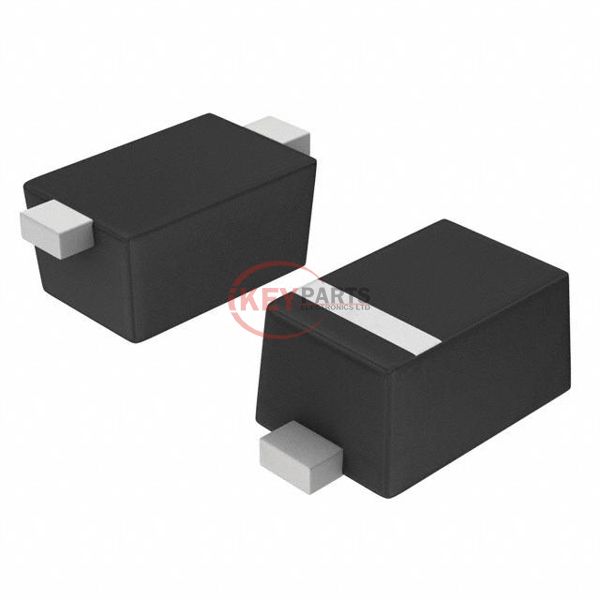

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSR0520V2T1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSR0520V2T1G
Description
DIODE SCHOTTKY 20V 500MA SOD523
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSR0520V2T1G PDF
NSR0520V2T1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)500mA (DC)
Voltage - Forward (Vf) (Max) @ If480 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)12 ns
Current - Reverse Leakage @ Vr75 µA @ 20 V
Capacitance @ Vr, F35pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
Operating Temperature - Junction-55°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply NSR0520V2T1G, use the request quote form to request NSR0520V2T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSR0520V2T1G. The price and lead time for NSR0520V2T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSR0520V2T1G. We look forward to working with you to establish long-term relations of cooperation.
