ES1PD-M3/85A

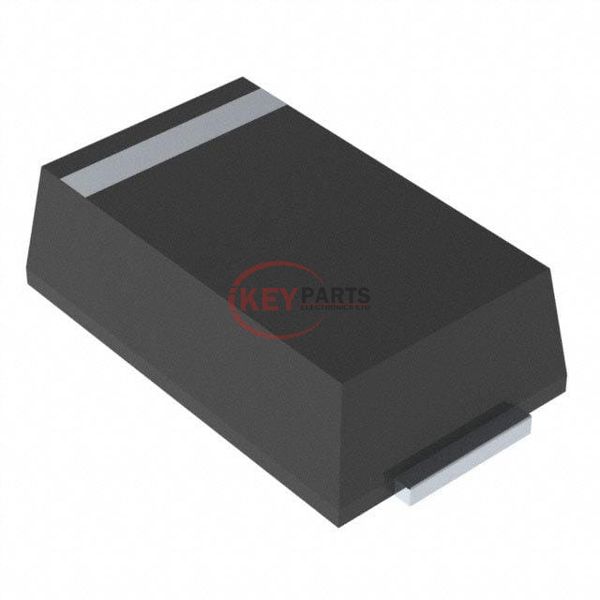

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division ES1PD-M3/85A

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
ES1PD-M3/85A
Description
DIODE GEN PURP 200V 1A DO220AA
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ES1PD-M3/85A PDF
ES1PD-M3/85A Tech Specifications
SerieseSMP®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If920 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25 ns
Current - Reverse Leakage @ Vr5 µA @ 200 V
Capacitance @ Vr, F10pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-220AA
Supplier Device PackageDO-220AA (SMP)
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply ES1PD-M3/85A, use the request quote form to request ES1PD-M3/85A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ES1PD-M3/85A. The price and lead time for ES1PD-M3/85A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ES1PD-M3/85A. We look forward to working with you to establish long-term relations of cooperation.
