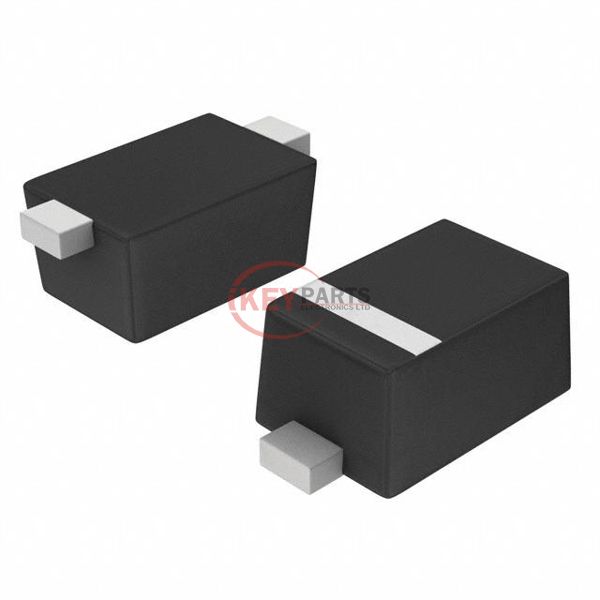

SBAT54XV2T5G

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor SBAT54XV2T5G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
SBAT54XV2T5G
Description
SCHOTTKY DIODE SOD523
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SBAT54XV2T5G PDF
SBAT54XV2T5G Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Capacitance @ Vr, F7.6pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
Operating Temperature - Junction-55°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply SBAT54XV2T5G, use the request quote form to request SBAT54XV2T5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SBAT54XV2T5G. The price and lead time for SBAT54XV2T5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SBAT54XV2T5G. We look forward to working with you to establish long-term relations of cooperation.
