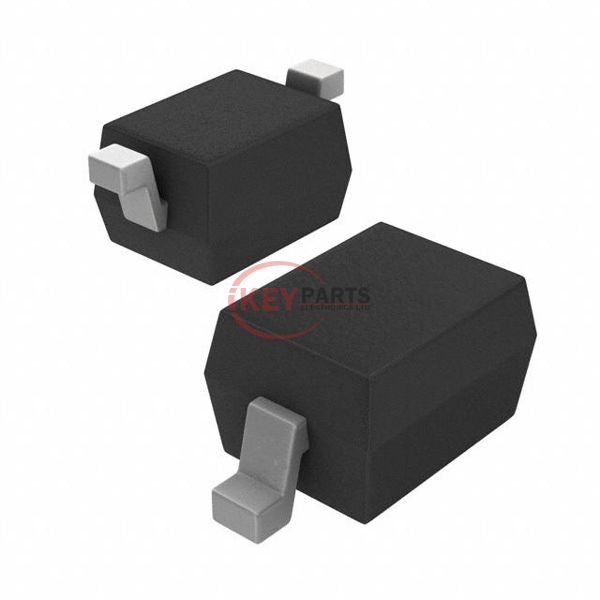

BAT760-7

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) BAT760-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
BAT760-7
Description
DIODE SCHOTTKY 30V 1A SOD323
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT760-7 PDF
BAT760-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If550 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 µA @ 15 V
Capacitance @ Vr, F25pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction-65°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply BAT760-7, use the request quote form to request BAT760-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT760-7. The price and lead time for BAT760-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT760-7. We look forward to working with you to establish long-term relations of cooperation.
