ULN2803ADWR

Enlarger

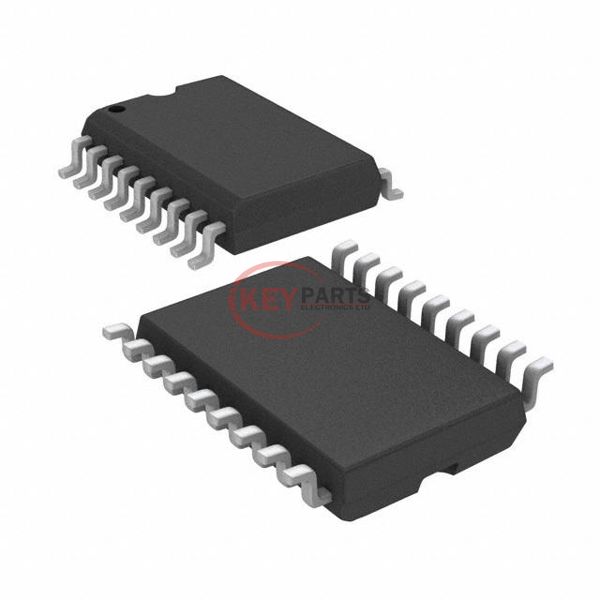

Lmages are for reference only See Product Specitications

Texas Instruments ULN2803ADWR

Manufacturer :
Texas Instruments
Mfr. Part # :
ULN2803ADWR
Description
TRANS 8NPN DARL 50V 0.5A 18SO
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ULN2803ADWR PDF
ULN2803ADWR Tech Specifications
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor Type8 NPN Darlington
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)50V
Vce Saturation (Max) @ Ib, Ic1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce-
Power - Max-
Frequency - Transition-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case18-SOIC (0.295", 7.50mm Width)
Supplier Device Package18-SOIC
Request Quote Now
Request Quote Now

We can supply ULN2803ADWR, use the request quote form to request ULN2803ADWR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ULN2803ADWR. The price and lead time for ULN2803ADWR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ULN2803ADWR. We look forward to working with you to establish long-term relations of cooperation.
