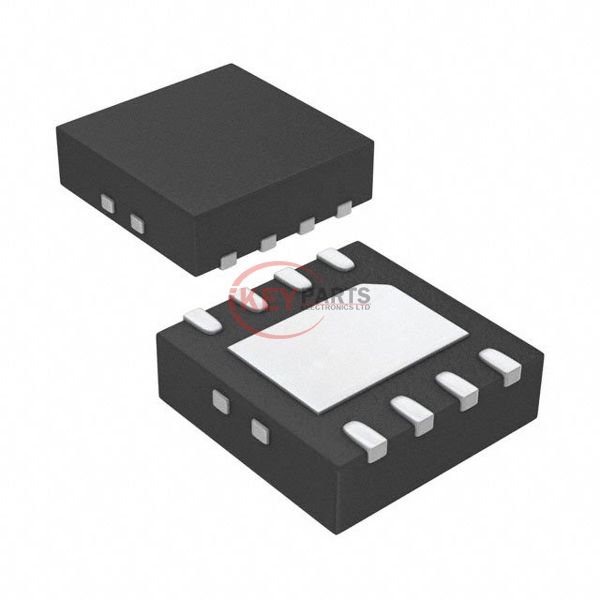

ZXTC6720MCTA

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXTC6720MCTA

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXTC6720MCTA
Description
TRANS NPN/PNP 80V/70V 8DFN
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXTC6720MCTA PDF
ZXTC6720MCTA Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN, PNP
Current - Collector (Ic) (Max)3.5A, 2.5A
Voltage - Collector Emitter Breakdown (Max)80V, 70V
Vce Saturation (Max) @ Ib, Ic340mV @ 300mA, 3.5A / 270mV @ 200mA, 1.5A
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 200mA, 2V / 40 @ 1.5A, 5V
Power - Max1.7W
Frequency - Transition160MHz, 180MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device PackageDFN3020B-8
Request Quote Now
Request Quote Now

We can supply ZXTC6720MCTA, use the request quote form to request ZXTC6720MCTA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXTC6720MCTA. The price and lead time for ZXTC6720MCTA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXTC6720MCTA. We look forward to working with you to establish long-term relations of cooperation.
