MBT3946DW1T2G

Enlarger

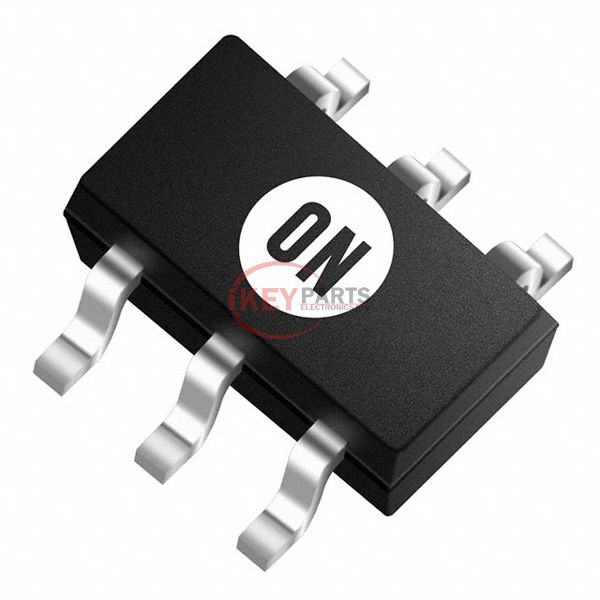

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MBT3946DW1T2G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MBT3946DW1T2G
Description
TRAN NPN/PNP 40V 0.2A SC88/SC70
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MBT3946DW1T2G PDF
MBT3946DW1T2G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN, PNP
Current - Collector (Ic) (Max)200mA
Voltage - Collector Emitter Breakdown (Max)40V
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 1V
Power - Max150mW
Frequency - Transition300MHz, 250MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88/SC70-6/SOT-363
Request Quote Now
Request Quote Now

We can supply MBT3946DW1T2G, use the request quote form to request MBT3946DW1T2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MBT3946DW1T2G. The price and lead time for MBT3946DW1T2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MBT3946DW1T2G. We look forward to working with you to establish long-term relations of cooperation.
