RL80G561MDN1KX

Enlarger

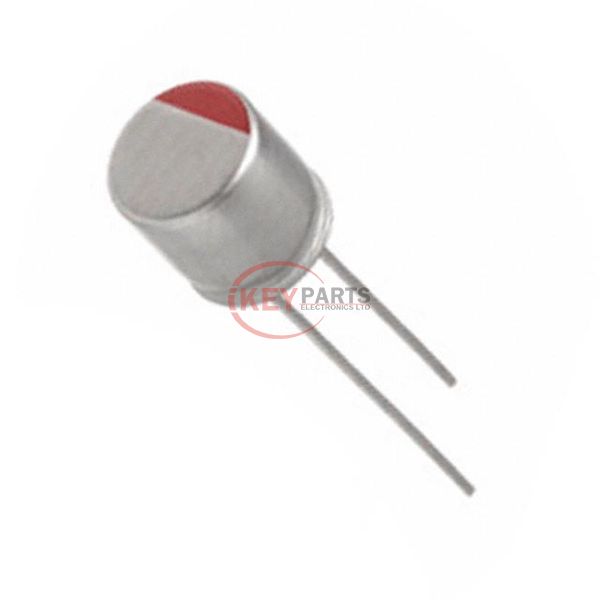

Lmages are for reference only See Product Specitications

Nichicon RL80G561MDN1KX

Manufacturer :
Nichicon
Mfr. Part # :
RL80G561MDN1KX
Description
CAP ALUM POLY 560UF 20% 4V T/H
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RL80G561MDN1KX PDF
RL80G561MDN1KX Tech Specifications
SeriesFPCAP, RL8
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
TypePolymer
Capacitance560 µF
Tolerance±20%
Voltage - Rated4 V
ESR (Equivalent Series Resistance)6mOhm
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency610 mA @ 120 Hz
Ripple Current @ High Frequency6.1 A @ 100 kHz
Impedance-
Lead Spacing0.138" (3.50mm)
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.315" (8.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply RL80G561MDN1KX, use the request quote form to request RL80G561MDN1KX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RL80G561MDN1KX. The price and lead time for RL80G561MDN1KX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RL80G561MDN1KX. We look forward to working with you to establish long-term relations of cooperation.
