2SEPC560MZ+TSS

Enlarger

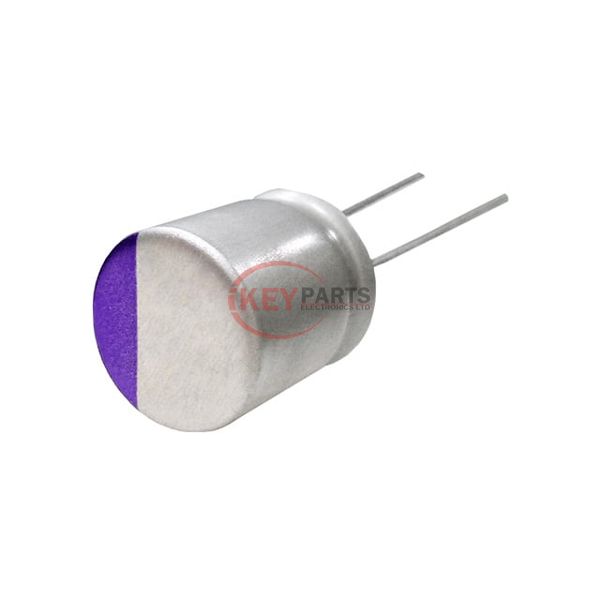

Lmages are for reference only See Product Specitications

Panasonic 2SEPC560MZ+TSS

Manufacturer :
Panasonic
Mfr. Part # :
2SEPC560MZ+TSS
Description
CAP ALUM POLY 560UF 20% 2.5V T/H
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SEPC560MZ+TSS PDF
2SEPC560MZ+TSS Tech Specifications
SeriesOS-CON™, SEPC
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
TypePolymer
Capacitance560 µF
Tolerance±20%
Voltage - Rated2.5 V
ESR (Equivalent Series Resistance)7mOhm
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency209 mA @ 120 Hz
Ripple Current @ High Frequency4.18 A @ 100 kHz
Impedance-
Lead Spacing0.079" (2.00mm)
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.354" (9.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply 2SEPC560MZ+TSS, use the request quote form to request 2SEPC560MZ+TSS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SEPC560MZ+TSS. The price and lead time for 2SEPC560MZ+TSS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SEPC560MZ+TSS. We look forward to working with you to establish long-term relations of cooperation.
