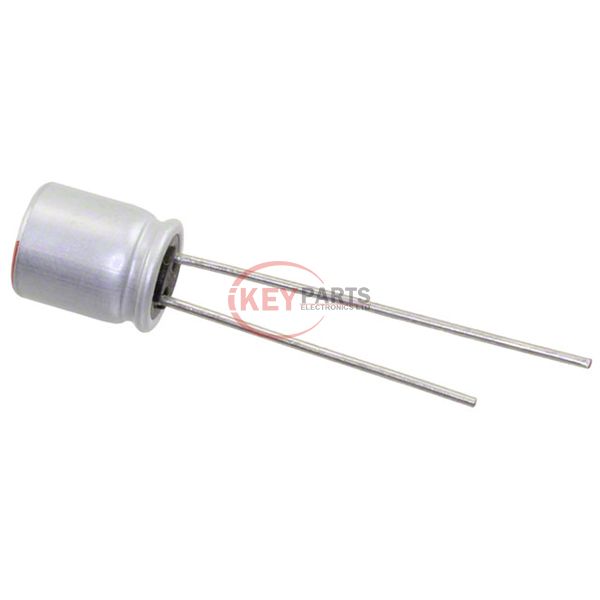

RS80E561MDN1

Enlarger

Lmages are for reference only See Product Specitications

Nichicon RS80E561MDN1

Manufacturer :
Nichicon
Mfr. Part # :
RS80E561MDN1
Description
CAP ALUM POLY 560UF 20% 2.5V T/H
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RS80E561MDN1 PDF
RS80E561MDN1 Tech Specifications
SeriesFPCAP, RS8
PackageBulk
Part StatusActive
TypePolymer
Capacitance560 µF
Tolerance±20%
Voltage - Rated2.5 V
ESR (Equivalent Series Resistance)7mOhm
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency560 mA @ 120 Hz
Ripple Current @ High Frequency5.6 A @ 100 kHz
Impedance-
Lead Spacing0.098" (2.50mm)
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.354" (9.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply RS80E561MDN1, use the request quote form to request RS80E561MDN1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RS80E561MDN1. The price and lead time for RS80E561MDN1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RS80E561MDN1. We look forward to working with you to establish long-term relations of cooperation.
