4SVT560M

Enlarger

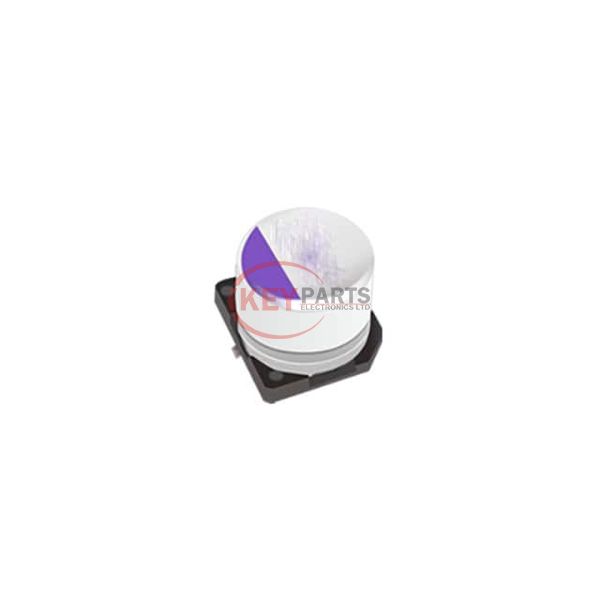

Lmages are for reference only See Product Specitications

Panasonic 4SVT560M

Manufacturer :
Panasonic
Mfr. Part # :
4SVT560M
Description
CAP ALUM POLY 560UF 20% 4V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
4SVT560M PDF
4SVT560M Tech Specifications
SeriesOS-CON™, SVT
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypePolymer
Capacitance560 µF
Tolerance±20%
Voltage - Rated4 V
ESR (Equivalent Series Resistance)22mOhm
Lifetime @ Temp.2000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency161 mA @ 120 Hz
Ripple Current @ High Frequency3.22 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.276" (7.00mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply 4SVT560M, use the request quote form to request 4SVT560M pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 4SVT560M. The price and lead time for 4SVT560M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 4SVT560M. We look forward to working with you to establish long-term relations of cooperation.
