EEH-ZC1J560V

Enlarger

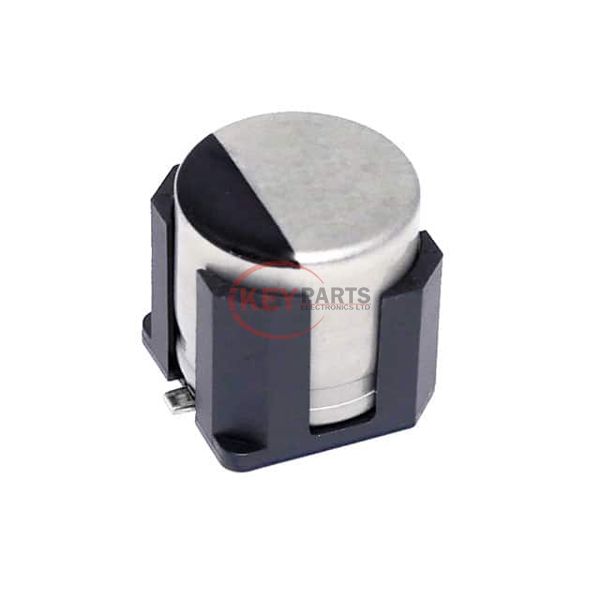

Lmages are for reference only See Product Specitications

Panasonic EEH-ZC1J560V

Manufacturer :
Panasonic
Mfr. Part # :
EEH-ZC1J560V
Description
CAP ALUM POLY 56UF 20% 63V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEH-ZC1J560V PDF
EEH-ZC1J560V Tech Specifications
SeriesZC, Anti-Vibration
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeHybrid
Capacitance56 µF
Tolerance±20%
Voltage - Rated63 V
ESR (Equivalent Series Resistance)30mOhm
Lifetime @ Temp.4000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency210 mA @ 100 Hz
Ripple Current @ High Frequency1.4 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEH-ZC1J560V, use the request quote form to request EEH-ZC1J560V pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEH-ZC1J560V. The price and lead time for EEH-ZC1J560V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEH-ZC1J560V. We look forward to working with you to establish long-term relations of cooperation.
