EEH-ZF1H560V

Enlarger

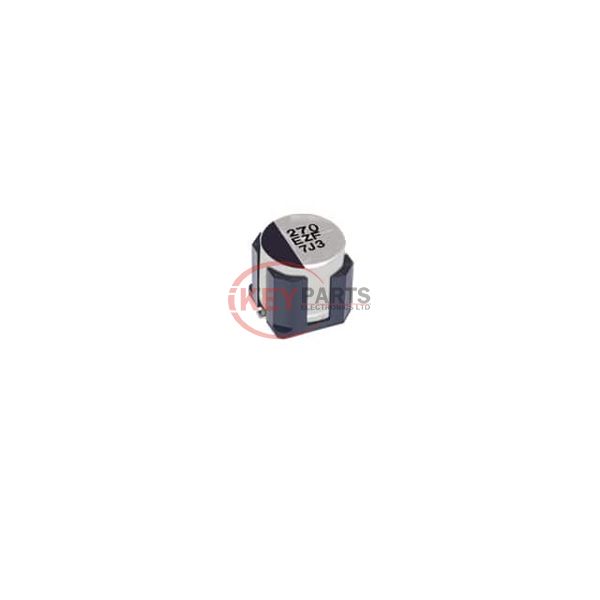

Lmages are for reference only See Product Specitications

Panasonic EEH-ZF1H560V

Manufacturer :
Panasonic
Mfr. Part # :
EEH-ZF1H560V
Description
CAP ALUM POLY HYB 56UF 50V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEH-ZF1H560V PDF
EEH-ZF1H560V Tech Specifications
SeriesZF, Anti-Vibration
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeHybrid
Capacitance56 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)35mOhm
Lifetime @ Temp.1000 Hrs @ 150°C
Operating Temperature-55°C ~ 150°C
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency105 mA @ 100 Hz
Ripple Current @ High Frequency700 mA @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.425" (10.80mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEH-ZF1H560V, use the request quote form to request EEH-ZF1H560V pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEH-ZF1H560V. The price and lead time for EEH-ZF1H560V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEH-ZF1H560V. We look forward to working with you to establish long-term relations of cooperation.
