PCX1H220MCS1GS

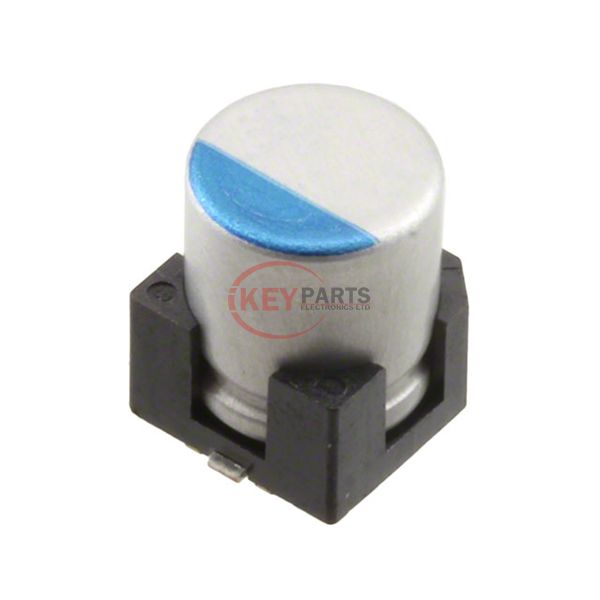

Enlarger

Lmages are for reference only See Product Specitications

Nichicon PCX1H220MCS1GS

Manufacturer :
Nichicon
Mfr. Part # :
PCX1H220MCS1GS
Description
CAP ALUM POLY 22UF 20% 50V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCX1H220MCS1GS PDF
PCX1H220MCS1GS Tech Specifications
SeriesPCX
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypePolymer
Capacitance22 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)37mOhm
Lifetime @ Temp.3000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency-
Ripple Current @ High Frequency1.7 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.433" (11.00mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply PCX1H220MCS1GS, use the request quote form to request PCX1H220MCS1GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCX1H220MCS1GS. The price and lead time for PCX1H220MCS1GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCX1H220MCS1GS. We look forward to working with you to establish long-term relations of cooperation.
