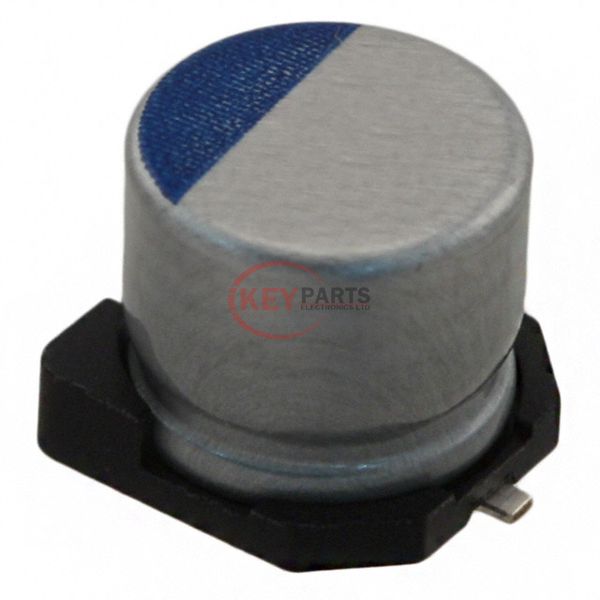

PCS1A560MCL9GS

Enlarger

Lmages are for reference only See Product Specitications

Nichicon PCS1A560MCL9GS

Manufacturer :
Nichicon
Mfr. Part # :
PCS1A560MCL9GS
Description
CAP ALUM POLY 56UF 20% 10V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCS1A560MCL9GS PDF
PCS1A560MCL9GS Tech Specifications
SeriesPCS
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypePolymer
Capacitance56 µF
Tolerance±20%
Voltage - Rated10 V
ESR (Equivalent Series Resistance)27mOhm
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency-
Ripple Current @ High Frequency2.3 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.236" (6.00mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply PCS1A560MCL9GS, use the request quote form to request PCS1A560MCL9GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCS1A560MCL9GS. The price and lead time for PCS1A560MCL9GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCS1A560MCL9GS. We look forward to working with you to establish long-term relations of cooperation.
