HZA226M080F24VT-F

Enlarger

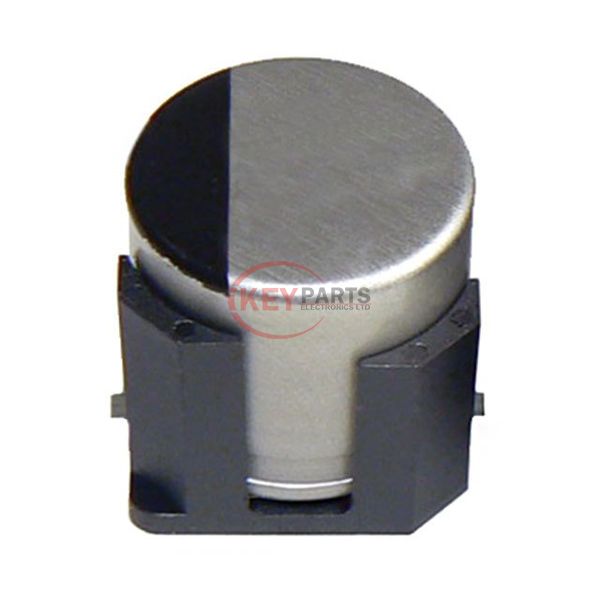

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics HZA226M080F24VT-F

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
HZA226M080F24VT-F
Description
CAP ALUM POLY HYB 22UF 80V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HZA226M080F24VT-F PDF
HZA226M080F24VT-F Tech Specifications
SeriesHZA_V
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeHybrid
Capacitance22 µF
Tolerance±20%
Voltage - Rated80 V
ESR (Equivalent Series Resistance)45mOhm
Lifetime @ Temp.10000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
RatingsAEC-Q200
ApplicationsAutomotive, Bypass, Decoupling
Ripple Current @ Low Frequency155 mA @ 220 Hz
Ripple Current @ High Frequency1.55 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply HZA226M080F24VT-F, use the request quote form to request HZA226M080F24VT-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HZA226M080F24VT-F. The price and lead time for HZA226M080F24VT-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HZA226M080F24VT-F. We look forward to working with you to establish long-term relations of cooperation.
