PCV1H560MCL2GS

Enlarger

Lmages are for reference only See Product Specitications

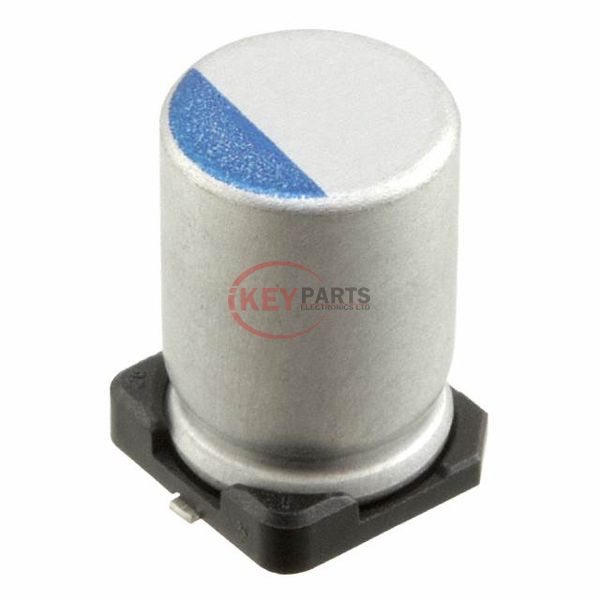

Nichicon PCV1H560MCL2GS

Manufacturer :
Nichicon
Mfr. Part # :
PCV1H560MCL2GS
Description
CAP ALUM POLY 56UF 20% 50V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCV1H560MCL2GS PDF
PCV1H560MCL2GS Tech Specifications
SeriesPCV
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypePolymer
Capacitance56 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)28mOhm
Lifetime @ Temp.3000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency-
Ripple Current @ High Frequency3.4 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.472" (12.00mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply PCV1H560MCL2GS, use the request quote form to request PCV1H560MCL2GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCV1H560MCL2GS. The price and lead time for PCV1H560MCL2GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCV1H560MCL2GS. We look forward to working with you to establish long-term relations of cooperation.
