Series | - | |
Package | Tape & Reel (TR) | |
Part Status | Active | |
Driven Configuration | Low-Side | |
Channel Type | Single | |
Number of Drivers | 1 | |
Gate Type | IGBT, N-Channel, P-Channel MOSFET | |
Voltage - Supply | 4.5V ~ 18V | |
Logic Voltage - VIL, VIH | 0.8V, 2.4V | |
Current - Peak Output (Source, Sink) | 9A, 9A | |
Input Type | Non-Inverting | |
High Side Voltage - Max (Bootstrap) | - | |
Rise / Fall Time (Typ) | 60ns, 60ns | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

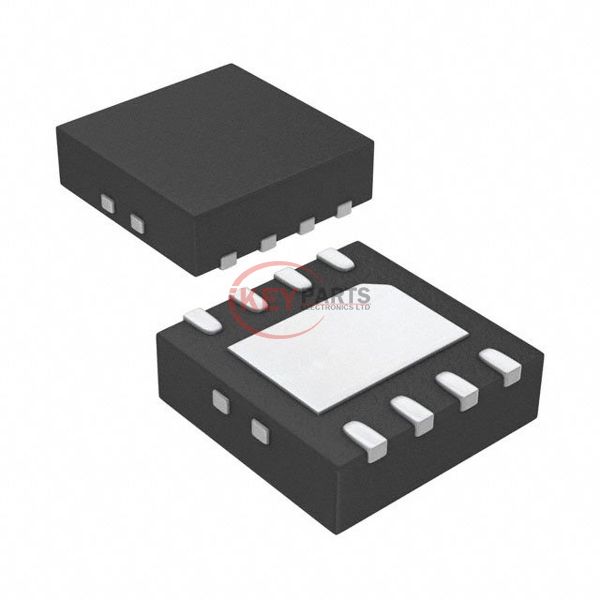

Package / Case | 8-VDFN Exposed Pad | |
Supplier Device Package | 8-DFN-S (6x5) |
We can supply TC4422VMF713, use the request quote form to request TC4422VMF713 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TC4422VMF713. The price and lead time for TC4422VMF713 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TC4422VMF713. We look forward to working with you to establish long-term relations of cooperation.
![]() |
