TPS72301DBVRG4

Enlarger

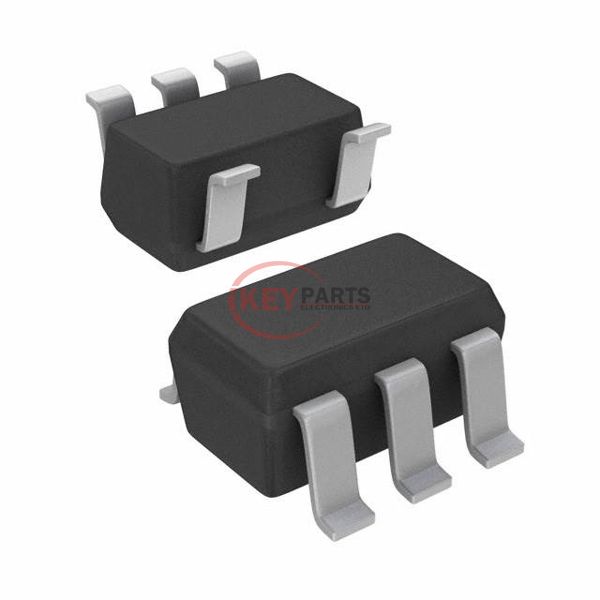

Lmages are for reference only See Product Specitications

Texas Instruments TPS72301DBVRG4

Manufacturer :
Texas Instruments
Mfr. Part # :
TPS72301DBVRG4
Description
IC REG LIN NEG ADJ 200MA SOT23-5
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPS72301DBVRG4 PDF
TPS72301DBVRG4 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationNegative
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)-10V
Voltage - Output (Min/Fixed)-1.2V
Voltage - Output (Max)-10V
Voltage Dropout (Max)0.5V @ 200mA
Current - Output200mA
Current - Quiescent (Iq)200 µA
Current - Supply (Max)500 µA
PSRR65dB ~ 48dB (1kHz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
Request Quote Now
Request Quote Now

We can supply TPS72301DBVRG4, use the request quote form to request TPS72301DBVRG4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPS72301DBVRG4. The price and lead time for TPS72301DBVRG4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPS72301DBVRG4. We look forward to working with you to establish long-term relations of cooperation.
