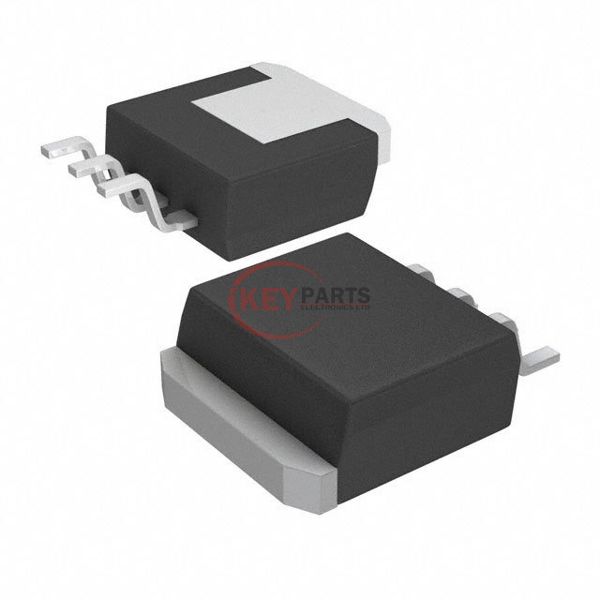

LM2940CSX-15/NOPB

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments LM2940CSX-15/NOPB

Manufacturer :
Texas Instruments
Mfr. Part # :
LM2940CSX-15/NOPB
Description
IC REG LIN 15V 1A DDPAK/TO263-3
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
LM2940CSX-15/NOPB PDF
LM2940CSX-15/NOPB Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)15V
Voltage - Output (Max)-
Voltage Dropout (Max)0.8V @ 1A
Current - Output1A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)15 mA
PSRR66dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device PackageDDPAK/TO-263-3
Request Quote Now
Request Quote Now

We can supply LM2940CSX-15/NOPB, use the request quote form to request LM2940CSX-15/NOPB pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LM2940CSX-15/NOPB. The price and lead time for LM2940CSX-15/NOPB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LM2940CSX-15/NOPB. We look forward to working with you to establish long-term relations of cooperation.
