LT3094IMSE#PBF

Enlarger

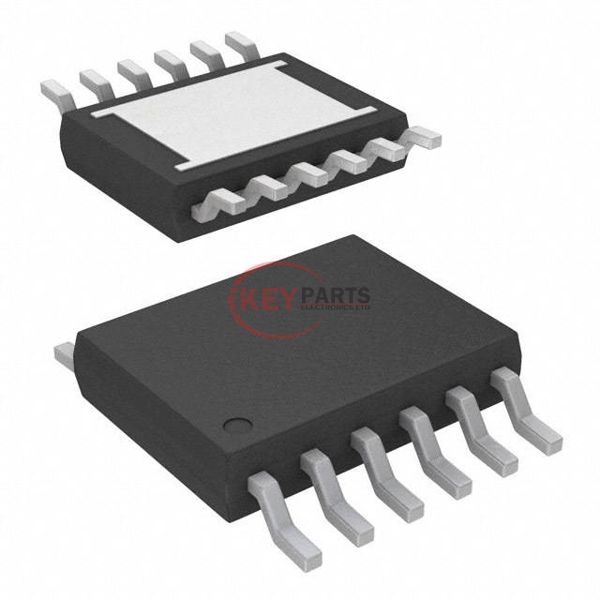

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) LT3094IMSE#PBF

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
LT3094IMSE#PBF
Description
IC REG LIN NEG ADJ 500MA 12MSOP
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
LT3094IMSE#PBF PDF
LT3094IMSE#PBF Tech Specifications
Series-
PackageTube
Part StatusActive
Output ConfigurationNegative
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)-2.3V
Voltage - Output (Min/Fixed)-19.5V
Voltage - Output (Max)0V
Voltage Dropout (Max)0.41V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)2.35 mA
Current - Supply (Max)23 mA
PSRR108dB ~ 28dB (120Hz ~ 10MHz)
Control FeaturesEnable, Power Good, Soft Start
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package12-MSOP-EP
Request Quote Now
Request Quote Now

We can supply LT3094IMSE#PBF, use the request quote form to request LT3094IMSE#PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LT3094IMSE#PBF. The price and lead time for LT3094IMSE#PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LT3094IMSE#PBF. We look forward to working with you to establish long-term relations of cooperation.
