BA7809CP-E2

Enlarger

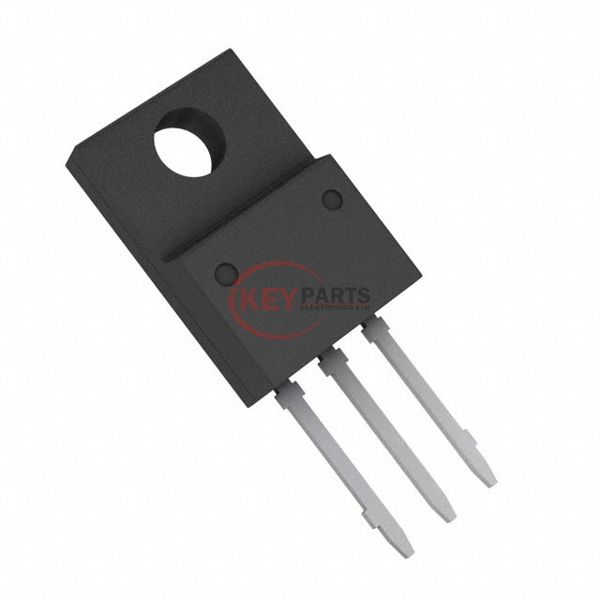

Lmages are for reference only See Product Specitications

ROHM Semiconductor BA7809CP-E2

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
BA7809CP-E2
Description
IC REG LINEAR 9V 1A TO220CP-3
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BA7809CP-E2 PDF
BA7809CP-E2 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)9V
Voltage - Output (Max)-
Voltage Dropout (Max)2V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)8 mA
Current - Supply (Max)800 µA
PSRR64dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / CaseTO-220-3 Cropped Leads
Supplier Device PackageTO-220CP-3
Request Quote Now
Request Quote Now

We can supply BA7809CP-E2, use the request quote form to request BA7809CP-E2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BA7809CP-E2. The price and lead time for BA7809CP-E2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BA7809CP-E2. We look forward to working with you to establish long-term relations of cooperation.
