Series | S-814 | |
Package | Tape & Reel (TR) | |
Part Status | Not For New Designs | |
Output Configuration | Positive | |
Output Type | Fixed | |
Number of Regulators | 1 | |
Voltage - Input (Max) | 10V | |
Voltage - Output (Min/Fixed) | 3.6V | |
Voltage - Output (Max) | - | |
Voltage Dropout (Max) | 0.33V @ 60mA | |
Current - Output | 110mA | |
Current - Quiescent (Iq) | 500 nA | |
Current - Supply (Max) | 40 µA | |
PSRR | 45dB (100Hz) | |
Control Features | Enable | |
Protection Features | Short Circuit | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

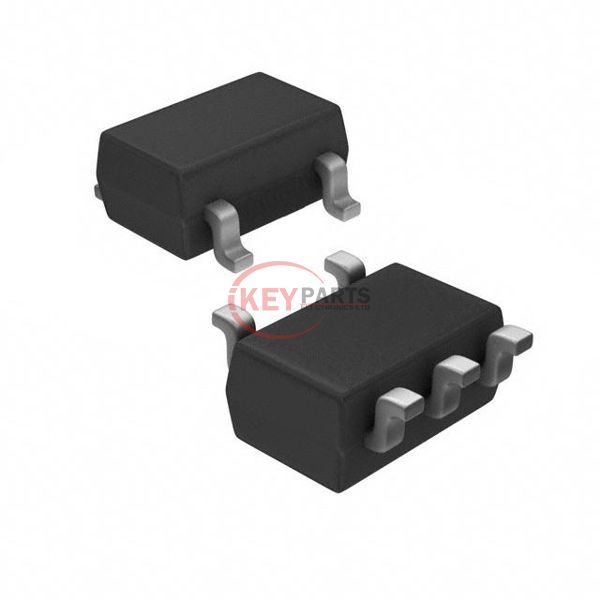

Package / Case | SC-74A, SOT-753 | |
Supplier Device Package | SOT-23-5 |
We can supply S-814A36AMC-BDAT2G, use the request quote form to request S-814A36AMC-BDAT2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S-814A36AMC-BDAT2G. The price and lead time for S-814A36AMC-BDAT2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S-814A36AMC-BDAT2G. We look forward to working with you to establish long-term relations of cooperation.
![]() |
