TPS74301RGWTG4

Enlarger

Lmages are for reference only See Product Specitications

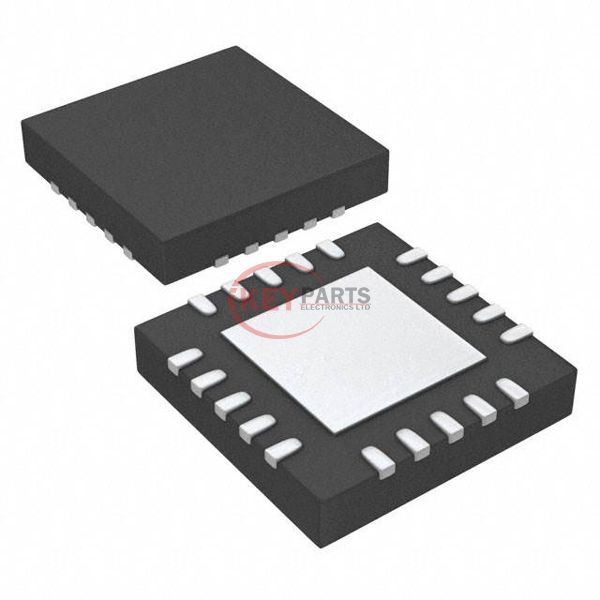

Texas Instruments TPS74301RGWTG4

Manufacturer :
Texas Instruments
Mfr. Part # :
TPS74301RGWTG4
Description
IC REG LIN POS ADJ 1.5A 20VQFN
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPS74301RGWTG4 PDF
TPS74301RGWTG4 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)3.6V
Voltage Dropout (Max)0.12V @ 1.5A
Current - Output1.5A
Current - Quiescent (Iq)115 µA
Current - Supply (Max)1.5 mA
PSRR73dB ~ 42dB (1kHz ~ 800kHz)
Control FeaturesEnable, Power Good, Tracking
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-VQFN Exposed Pad
Supplier Device Package20-VQFN (5x5)
Request Quote Now
Request Quote Now

We can supply TPS74301RGWTG4, use the request quote form to request TPS74301RGWTG4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPS74301RGWTG4. The price and lead time for TPS74301RGWTG4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPS74301RGWTG4. We look forward to working with you to establish long-term relations of cooperation.
