UA7815CKTTR

Enlarger

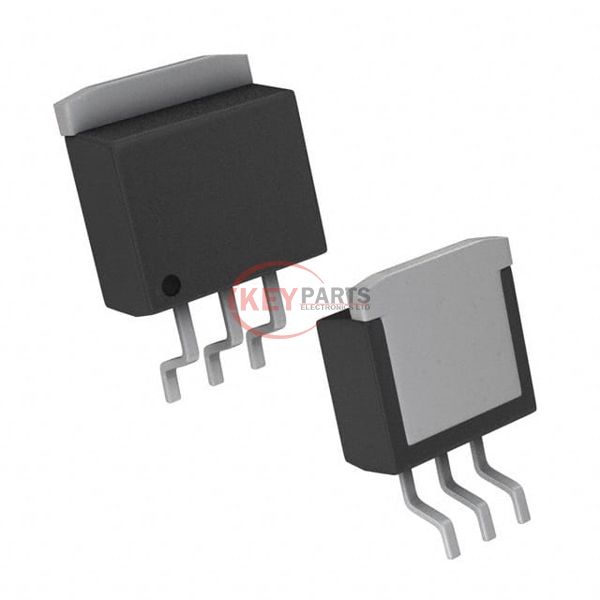

Lmages are for reference only See Product Specitications

Texas Instruments UA7815CKTTR

Manufacturer :
Texas Instruments
Mfr. Part # :
UA7815CKTTR
Description
IC REG LIN 15V 1.5A DDPAK/TO263
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UA7815CKTTR PDF
In Stock
1274
UA7815CKTTR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)30V
Voltage - Output (Min/Fixed)15V
Voltage - Output (Max)-
Voltage Dropout (Max)2V @ 1A
Current - Output1.5A
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR78dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device PackageDDPAK/TO-263-3
Request Quote Now
Request Quote Now

We can supply UA7815CKTTR, use the request quote form to request UA7815CKTTR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UA7815CKTTR. The price and lead time for UA7815CKTTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UA7815CKTTR. We look forward to working with you to establish long-term relations of cooperation.
