ADP7105ACPZ-R7

Enlarger

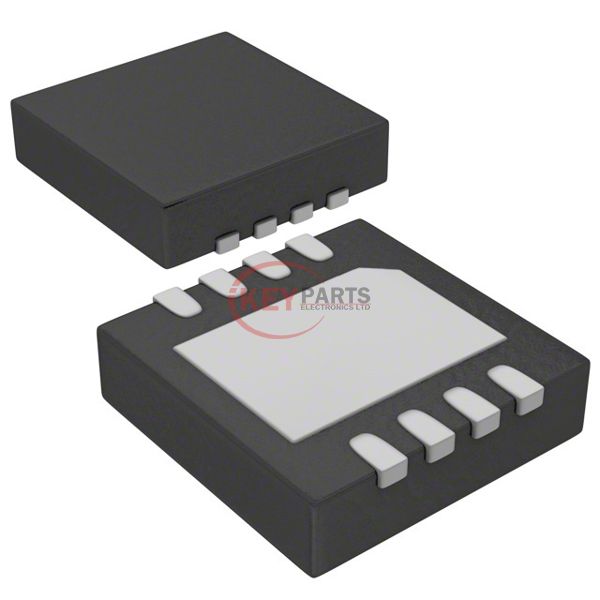

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) ADP7105ACPZ-R7

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
ADP7105ACPZ-R7
Description
IC REG LIN POS ADJ 500MA 8LFCSP
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ADP7105ACPZ-R7 PDF
ADP7105ACPZ-R7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)1.22V
Voltage - Output (Max)19V
Voltage Dropout (Max)0.55V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)900 µA
Current - Supply (Max)1.6 mA
PSRR80dB ~ 50dB (10kHz ~ 100kHz)
Control FeaturesEnable, Power Good, Under Voltage Lockout
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP-WD (3x3)
Request Quote Now
Request Quote Now

We can supply ADP7105ACPZ-R7, use the request quote form to request ADP7105ACPZ-R7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADP7105ACPZ-R7. The price and lead time for ADP7105ACPZ-R7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADP7105ACPZ-R7. We look forward to working with you to establish long-term relations of cooperation.
