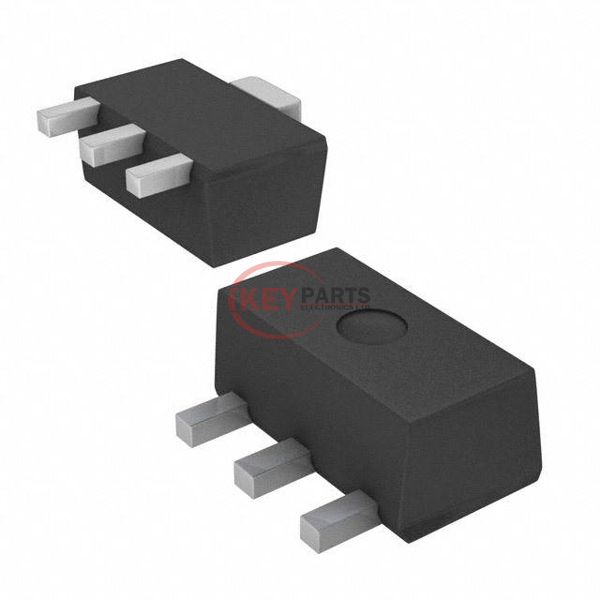

AZ1117R-ADJTRG1

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) AZ1117R-ADJTRG1

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
AZ1117R-ADJTRG1
Description
IC REG LIN POS ADJ 1.25A SOT89
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AZ1117R-ADJTRG1 PDF
AZ1117R-ADJTRG1 Tech Specifications
SeriesAZ1117
PackageTape & Reel (TR)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)13.75V
Voltage Dropout (Max)1.25V @ 1A
Current - Output1.25A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR75dB (120Hz)
Control Features-
Protection FeaturesThermal Shutdown
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
Request Quote Now
Request Quote Now

We can supply AZ1117R-ADJTRG1, use the request quote form to request AZ1117R-ADJTRG1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AZ1117R-ADJTRG1. The price and lead time for AZ1117R-ADJTRG1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AZ1117R-ADJTRG1. We look forward to working with you to establish long-term relations of cooperation.
