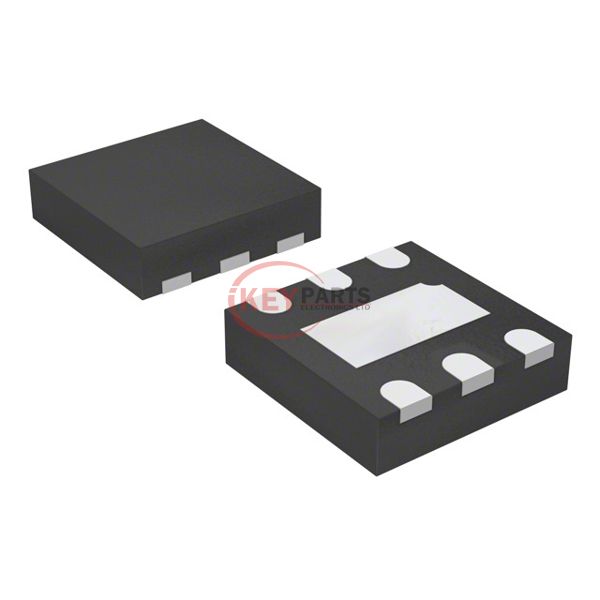

ADP7118ACPZN-R7

Enlarger

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) ADP7118ACPZN-R7

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
ADP7118ACPZN-R7
Description
IC REG LIN POS ADJ 200MA 6LFCSP
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ADP7118ACPZN-R7 PDF
ADP7118ACPZN-R7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)1.2V
Voltage - Output (Max)19.58V
Voltage Dropout (Max)0.42V @ 200mA
Current - Output200mA
Current - Quiescent (Iq)140 µA
Current - Supply (Max)320 µA
PSRR88dB ~ 50dB (10kHz ~ 1MHz)
Control FeaturesEnable, Soft Start
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case6-UDFN Exposed Pad, CSP
Supplier Device Package6-LFCSP-UD (2x2)
Request Quote Now
Request Quote Now

We can supply ADP7118ACPZN-R7, use the request quote form to request ADP7118ACPZN-R7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADP7118ACPZN-R7. The price and lead time for ADP7118ACPZN-R7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADP7118ACPZN-R7. We look forward to working with you to establish long-term relations of cooperation.
