BD3522EFV-E2

Enlarger

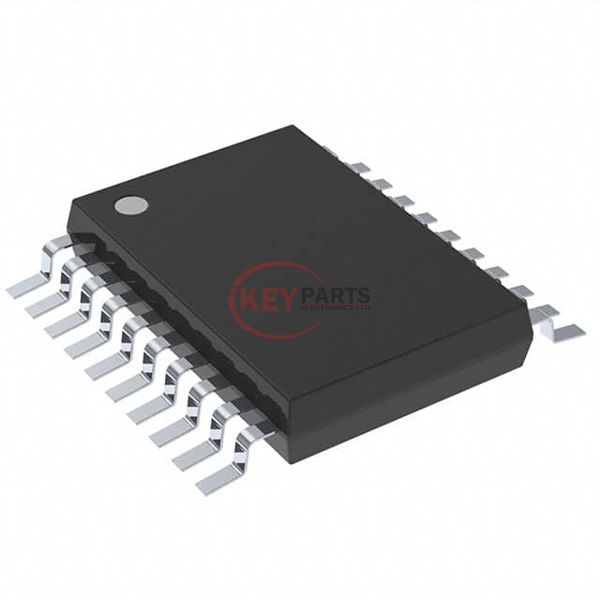

Lmages are for reference only See Product Specitications

ROHM Semiconductor BD3522EFV-E2

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
BD3522EFV-E2
Description
IC REG LIN POS ADJ 4A 20HTSSOP
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BD3522EFV-E2 PDF
BD3522EFV-E2 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusNot For New Designs
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)4.5V
Voltage - Output (Min/Fixed)0.65V
Voltage - Output (Max)2.7V
Voltage Dropout (Max)-
Current - Output4A
Current - Quiescent (Iq)1.4 mA
Current - Supply (Max)2.2 mA
PSRR-
Control FeaturesEnable, Soft Start
Protection FeaturesOver Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature-10°C ~ 100°C
Mounting TypeSurface Mount
Package / Case20-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package20-HTSSOP-B
Request Quote Now
Request Quote Now

We can supply BD3522EFV-E2, use the request quote form to request BD3522EFV-E2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BD3522EFV-E2. The price and lead time for BD3522EFV-E2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BD3522EFV-E2. We look forward to working with you to establish long-term relations of cooperation.
